ACPL-333J-500E Datasheet
Product Details
Description
The ACPL-333J is an advanced 2.5 A output current, easy-to-use, intelligent gate drivers which make IGBT VCE fault protection compact, affordable, and easy-to implement. Features such as integrated VCE detection, under voltage lockout (UVLO), “soft” IGBT turn-off, isolated open collector fault feedback, active Miller clamping and Auto fault reset provide maximum design flexibility and circuit protection.
The ACPL-333J contains a AlGaAs LED. The LED is optically coupled to an integrated circuit with a power output stage. ACPL-333J are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The voltage and current supplied by these optocouplers make them ideally suited for directly driving IGBTs with ratings up to 1200 V and 150 A. For IGBTs with higher ratings, the ACPL-333J can be used to drive a discrete power stage which drives the IGBT gate. The ACPL-333J have an insulation voltage of VIORM = 1230 VPEAK.
Features
• 2.5 A maximum peak output current
• 2.0 A minimum peak output current
• 250 ns maximum propagation delay over temperature range
• 1.7A Active Miller Clamp.Clamp pin short to VEE if not used
• Desaturation Detection
• Under Voltage Lock-Out Protection (UVLO) with Hysteresis
• Open Collector Isolated fault feedback
• “Soft” IGBT Turn-off
• Automatic Fault Reset after fxed mute time , typical 26μs
• Available in SO-16 package
• 100 ns maximum pulse width distortion (PWD)
• 50 kV/μs minimum common mode rejection (CMR) at VCM = 1500 V
• ICC(max) < 5 mA maximum supply current
• Wide VCC operating range: 15 V to 30 V over temperature range
• Wide operating temperature range: –40°C to 105°C
• Safety approvals: UL approval, 5000 VRMS for 1 minute, CSA approval, IEC/EN/DIN-EN 60747-5-5 approval VIORM = 1230 VPEAK
Applications
• Isolated IGBT/Power MOSFET gate drive
• AC and brushless DC motor drives
• Industrial inverters and Uninterruptible Power Supply (UPS)
Specifications
| Attribute | Attribute Value |
| Manufacturer | Broadcom |
| Product Category | Isolators - Gate Drivers |
| Manufacturer | Broadcom Limited |
| Product-Category | Logic Output Optocouplers |
| RoHS | Details |
| Brand | Broadcom / Avago |
| Package-Case | SO-16 |
| Output-Type | Open Collector |
| Number-of-Channels | 2 Channel |
| Vf-Forward-Voltage | 1.95 V |
| Vr-Reverse-Voltage | 5 V |
| Pd-Power-Dissipation | 600 mW |
| Maximum-Operating-Temperature | + 105 C |
| Minimum-Operating-Temperature | - 40 C |
| Packaging | Reel |
| Fall-Time | 50 ns |
| Rise-Time | 50 ns |
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
ACPL-333J-000E
Optoelectronics | Optoelectronic Device, ROHS COMPLIANT, SURFACE MOUNT, SOP-16 | Broadcom Limited | ACPL-333J-500E vs ACPL-333J-000E |
ACPL-333J-500E
Optoelectronics | Optoelectronic Device, ROHS COMPLIANT, SURFACE MOUNT, SOP-16 | Broadcom Limited | ACPL-333J-500E vs ACPL-333J-500E |
Descriptions
2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SO
Logic Output Optocouplers 2.5A IGBT Gate Drive
Who we are?
is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
|
|

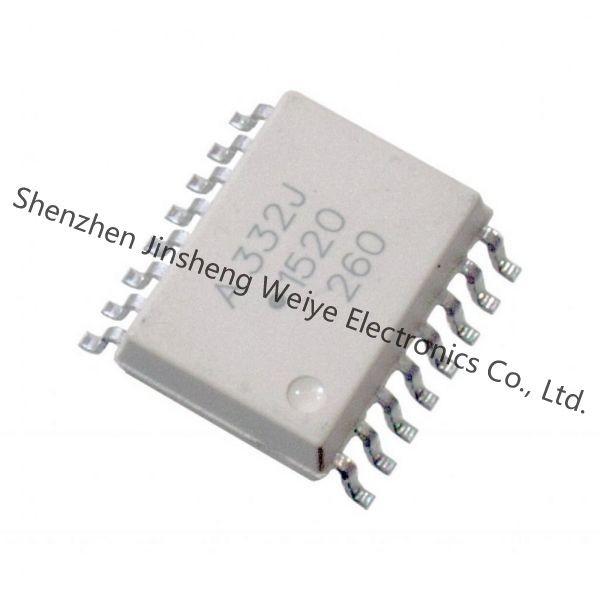

ACPL-333J-500E Logic Output Optocouplers 2.5A IGBT Gate Drive Images
|
